Tutorial for the calculation of per-residue contributions to the energy barrier in CP2K

This tutorial is designed to calculate the energy contribution of amino acid residues to the energy barrier of a given reaction. This can be achieved by performing single-point calculations on the provided reactant and transition state structures, each with the specified residue deleted.

It requires a file with a list of residues to be deleted, a *prmtop file, reactant and transition state structures in the *pdb format, a CP2K input template and a file with a VMD selection of the QM region. The following packages are also required: VMD, cpptraj, parmed.

I - Input Preparation

A selection in the format presented in qm_selection.dat is required to adequately build the QM system (the atom numbers will change upon residue deletion, resid’s remain the same). This can be achieved through the following procedure:

Open the system in VMD, save a *.gro file and a serial_numbers.dat file with the serial numbers of a selection:

user@machine:~$ vmd hpla2.prmtop R.pdb
# save a *.gro file of the system
animate write gro system.gro
# make a VMD selection
set sel [atomselect 0 "index 426 430 436 440 443 447 459 463 466 470 673 677 679 682 684 688 690 694 696 699 702 706 728 731 732 734 736 739 741 985 988 989 991 993 996 998 1357 1360 1939 1942 1945 1948 1951 1953 1959 1962 1966 1970 1974 1981 1983 1986 1989 1992 1897 429 431 439 441 442 446 448 462 464 465 469 471 472 676 678 680 681 685 687 689 693 695 697 698 705 707 729 730 733 735 738 740 742 986 987 990 992 995 997 999 1358 1359 1940 1941 1943 1944 1949 1950 1952 1954 1955 1960 1961 1963 1964 1967 1968 1969 1971 1972 1973 1975 1976 1977 1984 1985 1987 1988 1990 1991 1993 1994 34854 34855 428 438 445 461 468 675 683 686 692 704 1965 427 437 444 460 467 674 691 700 701 703 737 994 1361 1362 1946 1947 1956 1958 1978 1979 1980 1982 34853 1957"]
# get the serial numbers
set serial_numbers [$sel get serial]
# save the serial numbers to a serial_numbers.dat file
set output [open "serial_numbers.dat" "w"]
puts $output $serial_numbers
close $output
quit
# replace spaces by + for a PYMOL compatible selection
user@machine:~$ sed -i 's/ /+/g' serial_numbers.dat

The *.gro file can then be opened in PYMOL, the selection introduced and a HL.mol2 file exported:

user@machine:~$ pymol -cq system.gro -d "select my_selection, index $(paste -sd+ serial_numbers.dat); save HL.mol2, my_selection"

Then the mol2_vmd-qmsel.shmol2_vmd-qmsel.sh script can be used to extract the selection in the required format:

user@machine:~$ ./mol2_vmd-qmsel.sh HL.mol2 > qm_selection.dat

The del_res_qmmm_cp2k.sh script has the following usage:

user@machine:~$ ./del_res_qmmm_cp2k.sh residue_list.dat topology.prmtop R.pdb TS.pdb cp2k_template.inp qm_selection.dat

It prepares a directory for each residue in the list where the input files for CP2K will be output. The supplied topology and structures will be processed through CPPTRAJ to delete each of the specified residues. Since deleting residues changes the atom numbering, the QM/MM settings must be updated for each deletion. The vmd_forceeval.tcl script is called within the latter to produce a file with the configuration of the QM layer, defined by the selection in the qm_selection.dat file. The cp2k_template.inp file must have tags (PRMTOP_TAG and STATE_TAG) placed in the right places.

The calculations can then be run using a for loop:

user@machine:~$ for i in RES_*; do cd "$i" ; cp2k.popt -i res_del_R.inp -o res_del_R.out ; cp2k.popt -i res_del_TS.inp -o res_del_TS.out ; cd .. ; done

II - Output Processing

After running the single-point calculations, the following command allows us to extract the absolute energies and calculate the R->TS energy barrier for each residue deletion:

user@machine:~$ paste <(for i in RES_*; do echo "$i" | sed 's/RES_//g'; done) <(for i in RES_*; do echo $(grep "Total FORCE" "$i"/res_del_TS.out | tail -n -1) ; done | awk '{print $9}') <(for i in RES_*; do echo $(grep "Total FORCE" "$i"/res_del_R.out | tail -n -1) ; done | awk '{print $9}') | awk '{print $1,($2-$3)*627.509}' | sort -n -k1,1 > energy_differences.dat

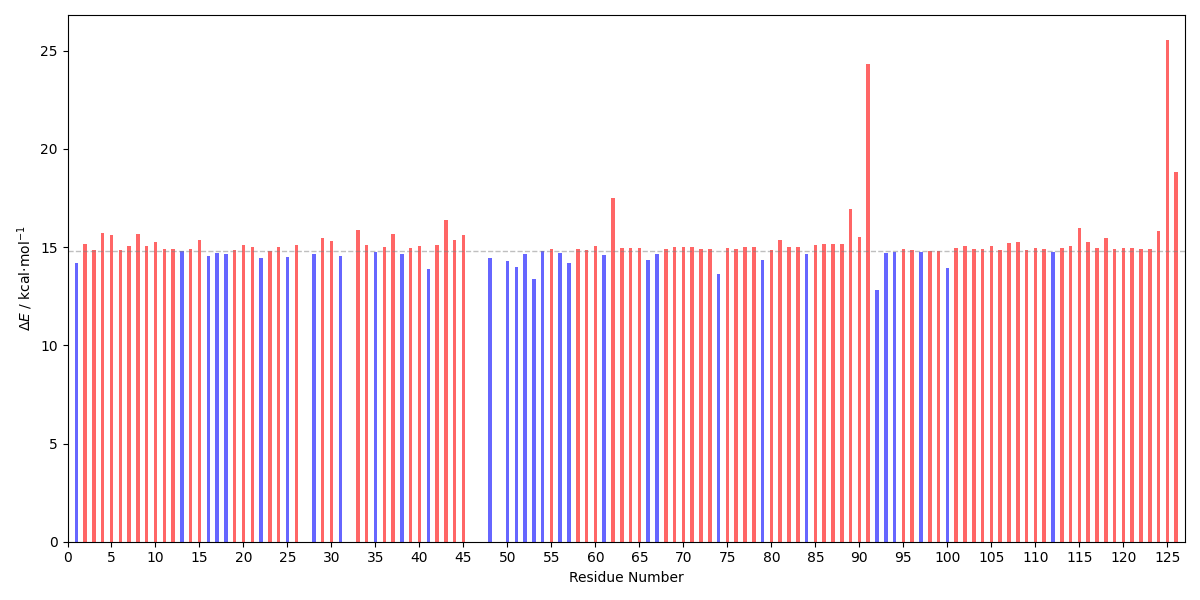

The energy barriers can be plotted with the E_diff_bar_plot.py script:

user@machine:~$ python E_diff_bar_plot.py energy_differences.dat

The calculated energy barriers upon deletion can be compared with the original energy barrier (14.8 kcal⋅mol^-1) to see if the residues are stabilizing or destabilizing to the transition state of the reaction step. Here, we can see that the deletion of most residues is unfavorable (this is expected for a small protein in a system with a considerable amount of charged molecules), however, the deletion of residue 92 decreases the energy barrier.

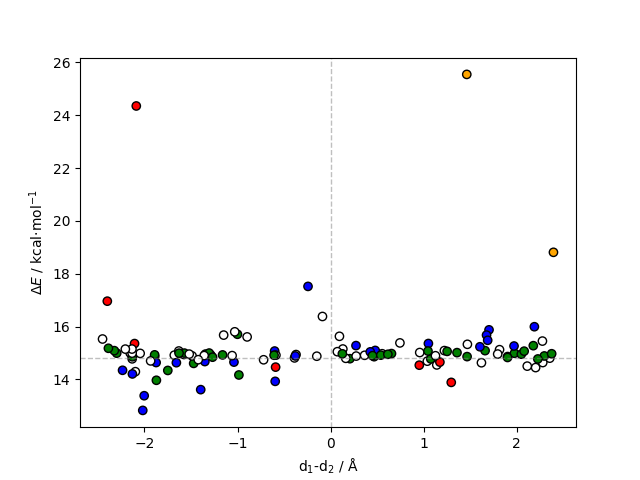

For reactions involving charge separation, it might be useful to represent the residues relative to the separation plane that characterizes the macrodipole induced by the enzyme. This can be done with the E_diff_dist_plot.py script:

user@machine:~$ python E_diff_dist_plot.py TS.pdb energy_differences.dat 684 34856 1981 1982

The script plots the calculated energy barriers against d₁-d₂, where d₁ is the distance between the center of geometry of the deleted residue and the midpoint between the atoms that represent the direction of the positive charge, and d₂ is the distance between the center of geometry of the deleted residue and the midpoint between the atoms that represent the direction of the negative charge. Suppose the used conformation is considerably stable and the charge separation reaction is simple. In that case, this approach can accurately capture and quantify the electrostatic contribution of residues to the transition state. Usually, negatively charged residues close to the positive moiety stabilize the transition state, while positively charged residues are destabilizing (and vice-versa relative to the negatively charged moiety). Note that the electric field induced by enzymes can be quite complex and the latter assumption might not always be true. For example, if a positively charged residue is close to the positive charge, but stabilizing the negative charges of two chemical groups nearby, the repulsion that arises from the lack of neutralizing positive charge may increase the energy barrier instead. In any case, when discussing this type of result, the environment of the specific residues should be taken into account.
